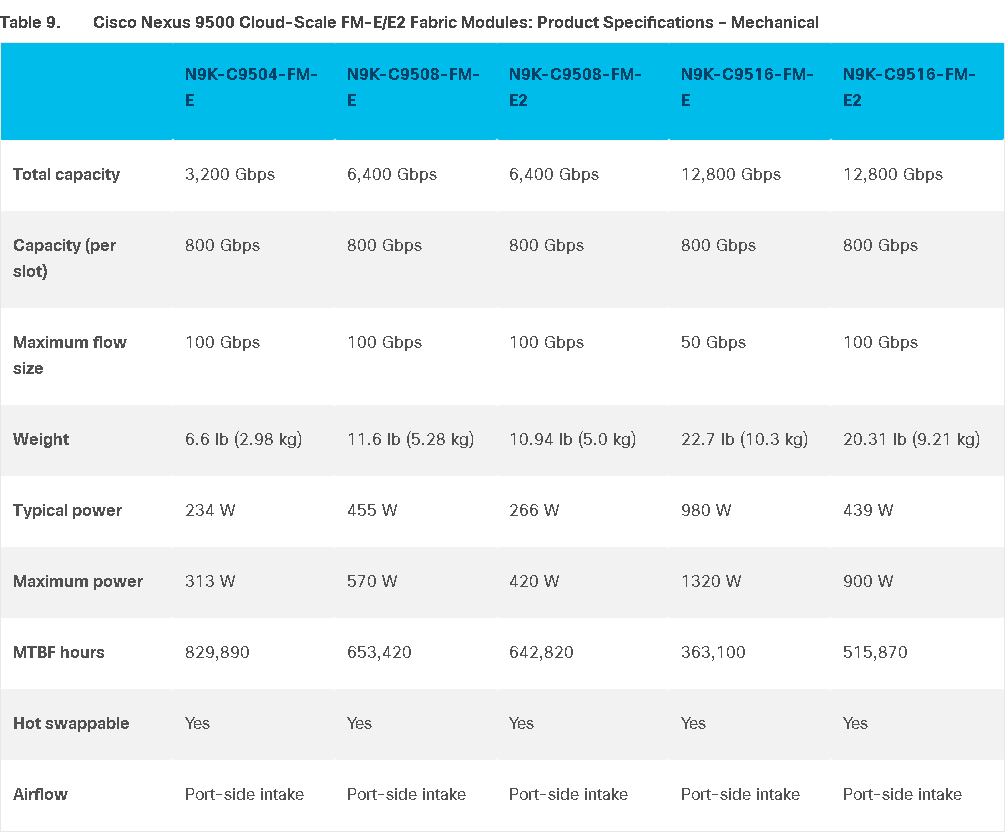

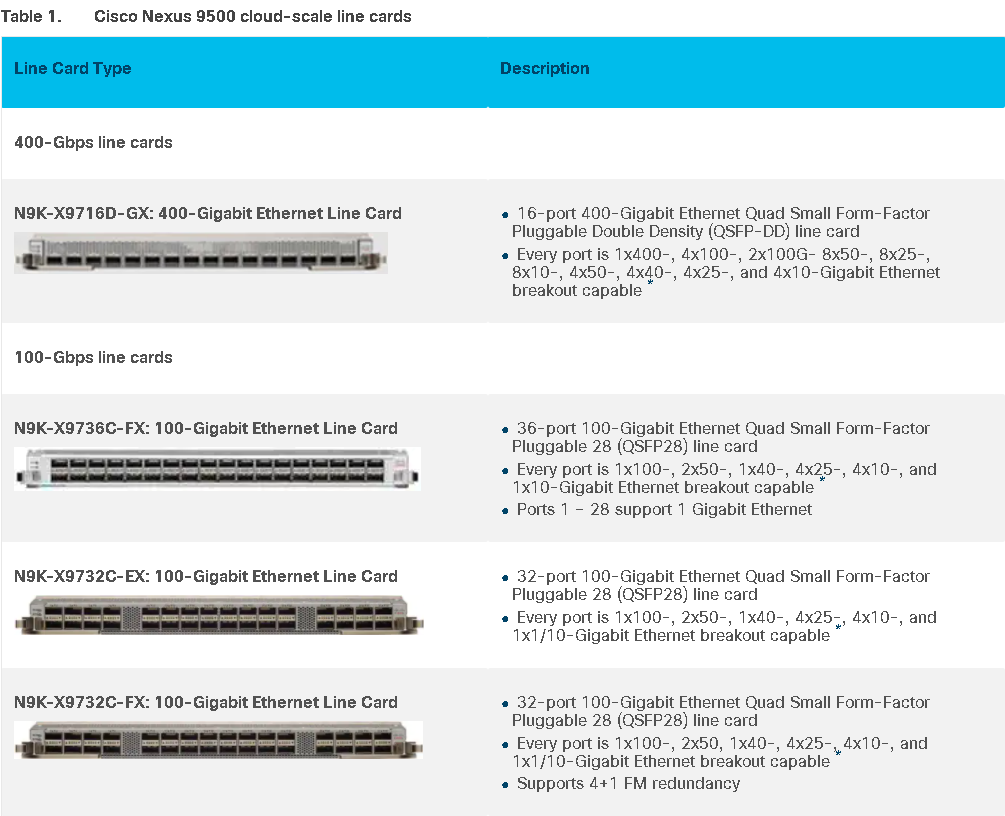

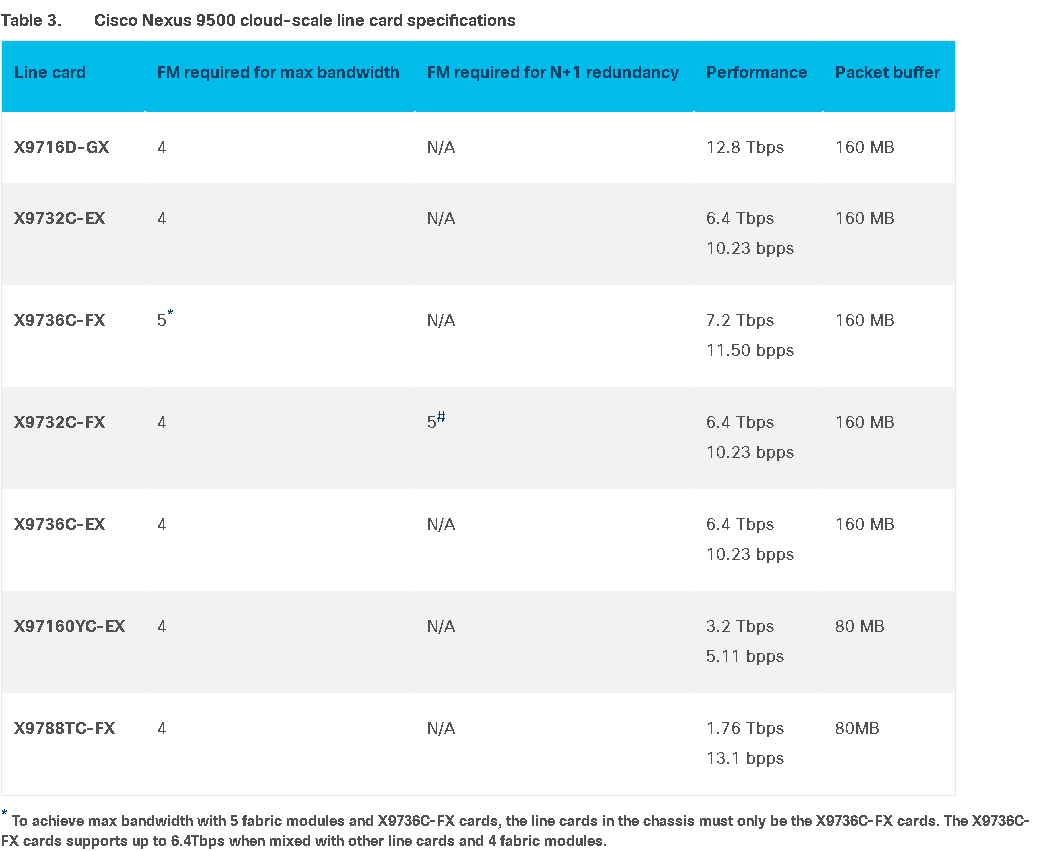

The Cisco Nexus 9500 Series modular switches support a comprehensive selection of cloud-scale line cards and fabric modules that provide 1-, 10-, 25-, 40-, 50-, 100-, 200-, and 400-Gigabit Ethernet interfaces. A cloud scale line card provides up to 6.4 Terabits per second (Tbps) per slot and each cloud scale fabric module provides up to 1.6 Tbps to each line card slot。
The Cisco Nexus 9500 platform supports a rich selection of hot-swappable multispeed cloud-scale line cards and fabric modules optimized for data-center deployments. These cloud-scale line cards and fabric modules, built using Cisco® cloud-scale ASICs, provide the ideal foundation for large scalable data centers. The Cisco clouds-scale ASICs provide enhanced performance and features that are required to meet the evolving needs of the world’s largest cloud-scale data centers. These ASICs not only support foundational L2/L3 networking capabilities but also support enhanced capabilities such as policy-based fabric architectures (ACI or VXLAN), smart buffering, integrated line rate security, and real-time streaming telemetry over multispeed Ethernet ports. |
